GR Diverter Valve Get PDF datasheet

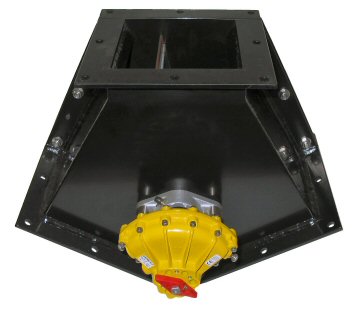

The GR diverter valve is used to divert powders and granules flowing under gravity.
It comes as either a Y type or a straight through type.
It's unique sealing system effectively isolates the redundant leg. The seals are so effective that the valve can even be used on low pressure pneumatic conveying systems.

The GR's main features are:

Red bullet Spring loaded vane seals for highly efficient sealing
Red bullet Very robust, heavy duty fabricated body
Red bullet Sealed for life shaft bearings
Red bullet Automatic vane seal wear compensation
Red bullet Smooth internal surfaces
Red bullet Easy access with one side completely removable

GR options include:

Red bullet Various materials of construction
Red bullet Pneumatic or manual operation
Red bullet Straight through or Y type
Red bullet Inlet and outlet round flange adaptors
Red bullet Ex explosion proof electrics
Red bullet Nickel plated body
Red bullet Hard chrome plated wear resistant vane
Red bullet Ceramic tiled internals
